high pressure mini diaphragm air pump

Product Categories
XIAMEN AJK TECHNOLOGY CO.,LTD
Contact Now

high pressure mini diaphragm air pump

  • 1
  • 2
  • 3

Brand Name : AJK

Model Number : AJK-B3206

Certification : RoHS

Place of Origin : Xiamen China

MOQ : 1PCS

Price : USD 2.5-4.5USD/PCS

Payment Terms : Western Union, L/C, T/T

Supply Ability : 500000PCS/MONTH

Packaging Details : 200PCS/CARTON (395*315*360MM)

Structure : Diaphragm

Application : Medical device; health care equipment; household appliance

Contact Now

high pressure mini diaphragm air pump

A high flow miniature air pump with stable performance and good dry running characteristics. It is compact, lightweight and customizable.

  • Item No.:

    AJK-B3206 (6-24V)

  • Free Flow:

    4 L/min

  • Max Pressure:

    100 kPa

  • DC Voltage:

    6/12/24 V

  • Applications:

    Medical equipment, healthcare equipment, household appliances
Product Details:

AJK DC 6 12 24 V Small Diaphragm Air Pump B3206 is a 32 mm wide pump that delivers up to 4 L/min of flow. Customization available on your specific needs and life expectations.

Features:

1.High pressure, high flow, stable performance, high efficiency and long life.

2.Our micro gas pumps are designed with low vibration, low noise and low power consumption.

3.100% oil free mini air pumps that maintain the purity of your system and are commonly used in FDA-approved systems.

4.ISO9001, CB, FDA, PAHs, REACH, RoHS compliant.

Typical Applications:

Blood pressure monitor

Tourniquet

Coffee maker

Bubble machine

Massage chair

Car massage seat

...

Model Rated Voltage Rated Current Free Flow Max Pressure Noise Media
AJK-B3206 DC 6.0 V < 600 mA 4.0 L/min 100 kPa < 60 dB Air/Gas
DC 12.0 V < 500 mA 4.0 L/min 100 kPa < 60 dB Air/Gas
DC 12.0 V < 250 mA 4.0 L/min 100 kPa < 60 dB Air/Gas

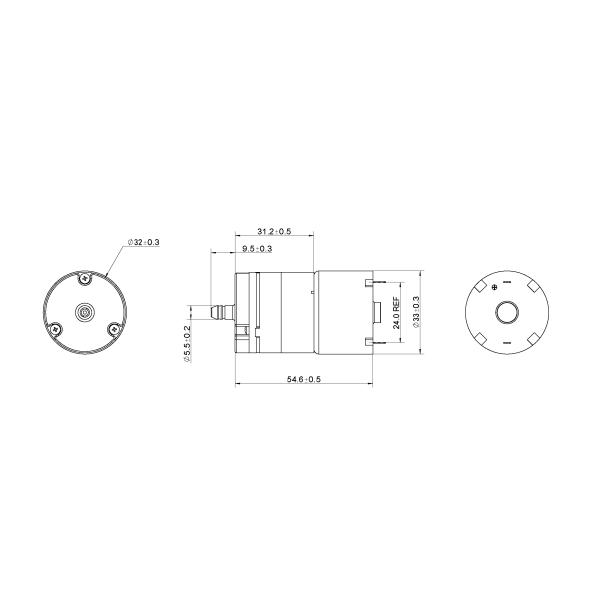

Dimension Drawing:

high pressure mini diaphragm air pump

Curve:

high pressure mini diaphragm air pump
